Selecting the correct 3 phase motor starter is one of those decisions that quietly determine whether your plant floor hums along smoothly—or stalls with costly downtime. The starter is the bridge between raw grid power and the rotating heart of your machinery, tasked with limiting inrush current, safeguarding windings, and integrating control logic. Yet with dozens of ratings, protection classes, and start-up philosophies in the 2025 catalog, even seasoned engineers can feel overwhelmed. This article breaks the process into clear, practical steps so you can specify a reliable starter switch for electric motor duty, whatever your industry.
Understand What a Motor Starter Does
At its simplest, a 3 phase motor starter performs three core functions:
Connect & disconnect the motor to the supply through contactors or solid-state devices.
Limit inrush current during acceleration so upstream breakers don’t trip and mechanical stresses stay within design limits.
Protect against overload, short-circuit, phase loss, and—on premium models—thermal or ground-fault conditions.

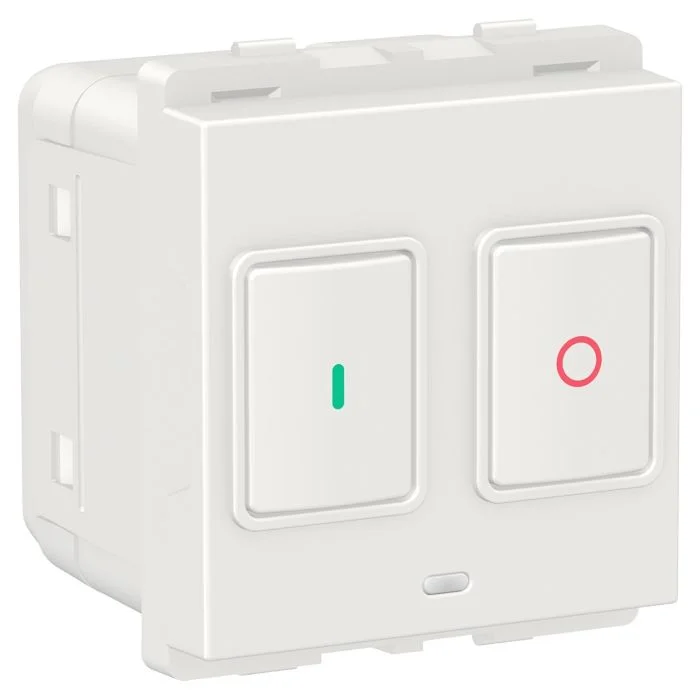

Think of a starter switch for electric motor service as both a fuse box and a smart gatekeeper rolled into one package.
Clarify Your Application Requirements
Before shopping datasheets, gather five key parameters:
Motor nameplate data – kilowatts (kW/HP), full-load current (FLC), service factor, and starting torque.
Starting duty cycle – how many starts per hour? Frequent start/stop conveyors demand sturdier contact materials than HVAC fans that run continuously.
Supply characteristics – nominal voltage, frequency, maximum allowable voltage dip, and short-circuit capacity.
Environmental factors – ambient temperature, dust, moisture, vibration, and whether the enclosure must be flameproof or IP-rated.
Control philosophy – local push-buttons, PLC integration, or remote IoT monitoring—all affect auxiliary contact counts and communication options.
Having this information at hand will quickly narrow your 3 phase motor starter shortlist.
Choose the Right Starting Method
Direct-On-Line (DOL)
Fastest & simplest. Connects the motor directly to full line voltage. Suitable for small motors (typically ≤7.5 kW) where inrush < 6×FLC won’t collapse voltage or strain couplings.
Star-Delta (Y-Δ)
Classic current-limiting. Starts in star (line voltage/√3), then switches to delta once up to ~80 % speed. Popular for pumps and compressors up to 75 kW but requires six leads and dual-contactors.
Autotransformer Starter
Medium-voltage favourite. Provides selectable taps (50 %, 65 %, 80 % of line voltage) for flexible torque control. Slightly bulkier, yet efficient.

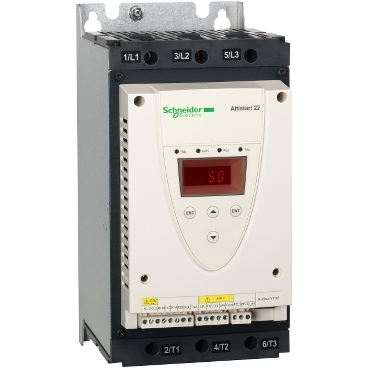

Soft Starter (Thyristor-based)
Smooth ramp-up & ramp-down. Reduces mechanical shocks on belts and gears. Integrates programmable kick-start torque, current limit, and deceleration profiles. Essential for high-inertia loads like crushers.
Variable Frequency Drive (VFD)
Full torque control. Adjusts speed as well as start current. Ideal where energy-saving variable-speed operation is required—fans, pumps, and conveyors benefit most.
Match the method to both your mechanical load and the utility’s flicker limits; a textile plant with sensitive lighting should avoid large DOL starters, whereas a remote bore-well pump set might manage fine.
Size the Contactor and Overload Relay Correctly
A starter switch for electric motor is only as good as its rating fit. Follow this sequence:
Consult IEC 60947-4-1 or NEMA ratings for the contactor class (AC-3 for squirrel-cage induction motors).
Select the contactor current at least equal to 1.15 × FLC for AC-3 duty. Oversize one frame if ambient > 40 °C.
Pick the overload relay range so its dial mid-point aligns with the motor’s rated current. This allows ±20 % adjustment as bearing wear or voltage swings change the load.
Verify short-circuit Icu/Ics ratings against the upstream breaker’s prospective fault level. A mismatch here is a common cause of catastrophic failures.
Factor In Advanced Protection & Diagnostics
Modern 3 phase motor starter units often include:
Phase-loss & phase-sequence monitoring – save motors from single-phasing burnouts.
PTC/PT100 thermal inputs – directly read stator winding temperatures and trip before insulation cooks.
Ground-fault sensing – faster than earth-leakage breakers for detecting insulation failures.
Communication modules – Modbus, Ethernet/IP, or Profinet for live current, energy, and event logs. Indispensable in Industry 4.0 plants.
Though these features add cost, they may eliminate hours of troubleshooting and unplanned downtime.
Mind the Enclosure and Mounting
From dusty rice mills in Nagpur to salty offshore rigs, the housing matters:
IP 54/55 for general dusty workshops with occasional wash-down.
IP 65 or NEMA 4X for aggressive wash-down zones like food processing.
Ex-d/Ex-e flameproof enclosures for Zone 1 or Zone 2 hazardous areas.
Open type (IP 20) only within a switchboard or MCC with its own protection.
Also, consider mounting orientation—vertical drop-out contactors depend on gravity; sideways installations need spring return kits.
Assess Lifecycle Costs, Not Just CapEx
A cheap starter that fails twice a year costs more than a premium design over a ten-year horizon. Factor in:
Mean Time Between Failure (MTBF) data.
Spare-parts availability—are coils, auxiliary blocks, and busbar kits stocked locally?
Energy losses—an efficient soft starter or VFD pays back through reduced heat and lower electricity bills.
Maintenance access—are terminals front-removable or buried behind live parts?
When comparing quotes, create a simple spreadsheet tallying purchase price, installation labour predicted energy savings (if using soft starters or VFDs), and expected maintenance events.
Common Pitfalls to Avoid
Ignoring Duty Cycle – DOL may be fine for an exhaust fan started once a shift, but a crane hoist requiring ten starts per minute will smoke its contact tips.
Underspecifying Control Voltage – A 230 V AC coil fed from a 208 V plant bus might chatter; always check variation limits.
Neglecting Altitude and Temperature Derating – Above 1,000 m or in 55 °C deserts, contactors must be derated by up to 15 %.
Mixing Brands Without Interface Checks – Not all overload relays fit every contactor frame; mismatched components void approvals.
Skipping Type-2 Coordination – When the starter and breaker aren’t tested together, a short-circuit can weld contacts, extending outages.
Real-World Selection Examples
Irrigation Pump (30 kW, rural) – Voltage dips tolerated, infrequent starts. A star-delta starter in an IP 54 steel enclosure balances cost and current limit.
Cement Plant Conveyor (75 kW, high inertia) – Requires controlled acceleration and ramp-down to prevent belt slippage. Choose a soft starter with torque-control firmware and PTC inputs.
Commercial HVAC Fan (15 kW, variable airflow) – Opt for a VFD to match speed with demand, saving up to 30 % energy, with a bypass contactor for redundancy.
Oil Rig Mud Pump (55 kW, Zone 1) – Explosion-proof Ex-d enclosure, autotransformer start to keep inrush low on generator sets, plus Modbus for remote monitoring.
Mapping your application to a proven template reduces risk and streamlines approvals.
Installation and Commissioning Tips
Torque terminals to spec—loose lugs cause hot joints and nuisance trips.
Phase-rotate and test before coupling; wrong rotation can shear pump impellers.
Set overload dial to 1.05 × motor FLC; fine-tune after one week of operation.
Document settings (trip class, soft-starter ramps, VFD parameters) in the panel door pocket for future service crews.
Train operators—teach them to recognize flashing fault codes versus power loss.
A solid start-up plan ensures your starter switch for electric motor integration delivers maximum uptime from day one.
Conclusion
Choosing the ideal 3 phase motor starter is less about chasing the lowest price and more about aligning electrical, mechanical, and environmental realities with the protective intelligence delivered by modern starters. When you weigh inrush limitations, motor duty cycles, enclosure demands, and networked diagnostics, the right starter switch for electric motor becomes obvious—and so does the payback in reduced maintenance and energy savings. For genuine, standards-compliant solutions—be it a rugged DOL, a sophisticated soft starter, or a fully featured VFD—look no further than the Schneider Electric eShop, where expert support and authentic components meet to power your application with confidence.
